Which is best for your flexographic printing press between UV inks and water-based inks?

Choosing between UV inks and water-based inks for a flexographic printing press depends on various factors, including application requirements, environmental considerations, production efficiency, and cost. Here’s a detailed comparison to help you make an informed decision:

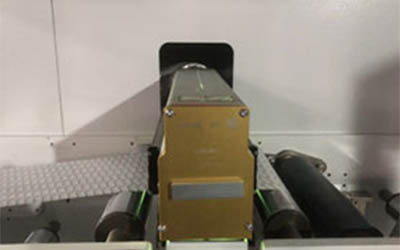

UV Dryer

1. Drying Mechanism and Production Efficiency

• UV Inks:

  • Cure instantly under ultraviolet (UV) light, enabling high-speed printing (up to 1,000+ feet per minute).

  • No need for lengthy drying tunnels, reducing press footprint and energy consumption for drying.

  • Ideal for tight production schedules or applications requiring immediate handling (e.g., label printing, plastic films).

• Water-Based Inks:

  • Require thermal drying (hot air or infrared) to evaporate water, which can limit speed (typically 300–800 feet per minute).

  • Drying efficiency is affected by humidity, potentially causing delays in high-moisture environments.

  • Suitable for slower-paced runs or materials that tolerate longer drying times (e.g., paper, cardboard).

2. Environmental and Safety Considerations

• UV Inks:

  • Typically contain fewer volatile organic compounds (VOCs) than solvent-based inks, but may include reactive diluents (acrylates) that can emit minimal odors.

  • Not ideal for direct food contact unless specifically certified, as some UV components may migrate.

  • UV curing produces no wastewater, making disposal simpler.

• Water-Based Inks:

  • Primarily use water as a solvent, resulting in near-zero VOC emissions—ideal for eco-friendly certifications (e.g., FDA-compliant for indirect food contact).

  • Safer for applications requiring low toxicity, such as children’s products or food packaging.

  • May require additives (e.g., ammonia) to adjust pH, which can emit mild odors; proper ventilation is needed.

3. Print Quality and Performance

• UV Inks:

  • Offer vibrant colors, high gloss, and excellent abrasion/chemical resistance (e.g., for detergent bottles or outdoor labels).

  • Can achieve fine details and smooth gradients, suitable for premium packaging or decorative prints.

  • Adhere well to non-porous substrates (plastic, metalized films) without pretreatment.

• Water-Based Inks:

  • Provide good color accuracy but may have slightly lower gloss and opacity compared to UV inks.

  • Require porous or treated substrates (paper, coated films) for optimal adhesion; may struggle with pure polyethylene or polypropylene.

  • New formulations have improved durability, making them suitable for non-demanding packaging (e.g., paper bags, corrugated boxes).

4. Cost and Equipment Requirements

• UV Inks:

  • Higher initial ink cost (20–50% more than water-based inks) due to specialized resins and photoinitiators.

  • Require UV curing systems (lamps, reflectors), which involve upfront investment ($10,000–$50,000 per press unit) and maintenance (lamp replacements every 1,000–2,000 hours).

  • Lower energy costs for drying compared to water-based inks (UV lamps consume electricity, but thermal dryers use more gas/electricity).

• Water-Based Inks:

  • Lower ink cost, making them economical for large runs.

  • Drying systems (ovens, infrared heaters) are simpler and cheaper to install, but may increase energy consumption for extended drying.

  • Requires regular maintenance of ink circulation systems to prevent microbial growth in water-based formulations.

5. Substrate Compatibility

• UV Inks:

  • Excel on non-porous materials (PET, PP, PVC, metalized films) and heat-sensitive substrates (e.g., shrink labels), as UV curing generates minimal heat.

  • Suitable for flexible packaging that requires resistance to oils, solvents, or friction.

• Water-Based Inks:

  • Best for porous substrates (paper, cardboard, untreated cotton) and water-based coatings.

  • May require primer layers for non-porous films, adding complexity and cost.

6. Regulatory and Market Trends

• UV Inks:

  • Face scrutiny in food packaging due to potential migration risks, but advancements in food-safe UV inks (e.g., no-bake, low-migration formulations) are emerging.

  • Preferred in markets prioritizing print durability (e.g., labels, industrial packaging).

• Water-Based Inks:

  • Align with global sustainability trends (e.g., EU regulations, California’s VOC limits) and are increasingly required for eco-certified packaging.

  • Dominant in paper-based packaging (e.g., cereal boxes, beverage cartons) and growing in flexible packaging with performance improvements.

Flexo Printing Machine

Conclusion: Which Is Best?

• Choose UV Inks if you need:

  • High-speed production, minimal drying time, or immediate post-print processing.

  • Excellent durability, gloss, and chemical resistance for non-porous substrates.

  • Premium print quality for labels, flexible packaging, or outdoor applications.

• Choose Water-Based Inks if you need:

  • Eco-friendly, low-VOC solutions for food packaging, children’s products, or sustainable branding.

  • Cost-effective printing on porous materials (paper, cardboard) with moderate performance needs.

  • Compliance with strict environmental regulations or certifications.

For many modern flexographic presses, a hybrid approach (e.g., water-based inks for bulk colors and UV inks for varnishes or spot colors) can balance efficiency and sustainability. Always test inks on your specific substrates and consult with ink manufacturers to optimize performance for your application.
